Christmas has a lot going for it, but it’s a major build distraction!
Anyway, now it’s over more progress …

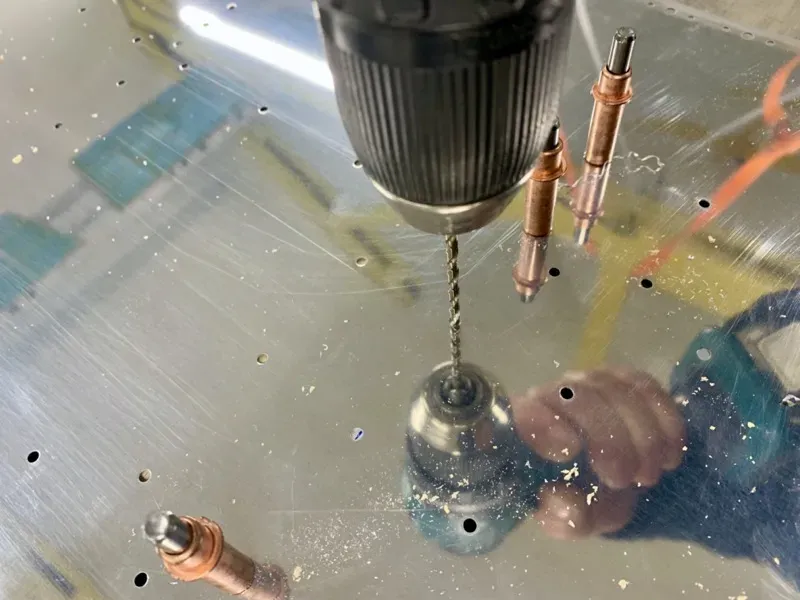

Match drilling the seat back hinges should have been a simple little job.
Well it was, but on my first hinge I found the hand drill elongated the floor holes a bit (my drill press couldn’t reach all the holes).

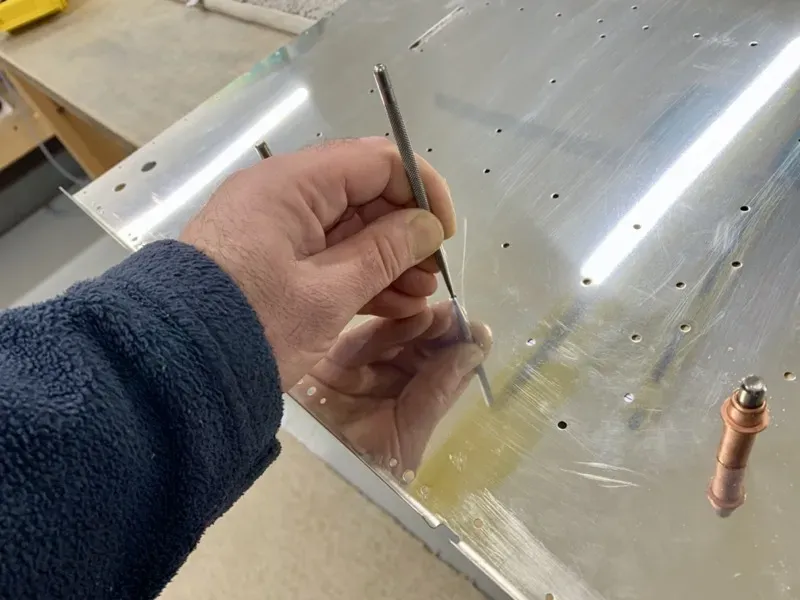

So I tried centre-punching …
… and this solved the issue.
Having deburred all the parts that need to be assembled in this section, I trial fitted the baggage floors.
Another perfect fit by Vans!

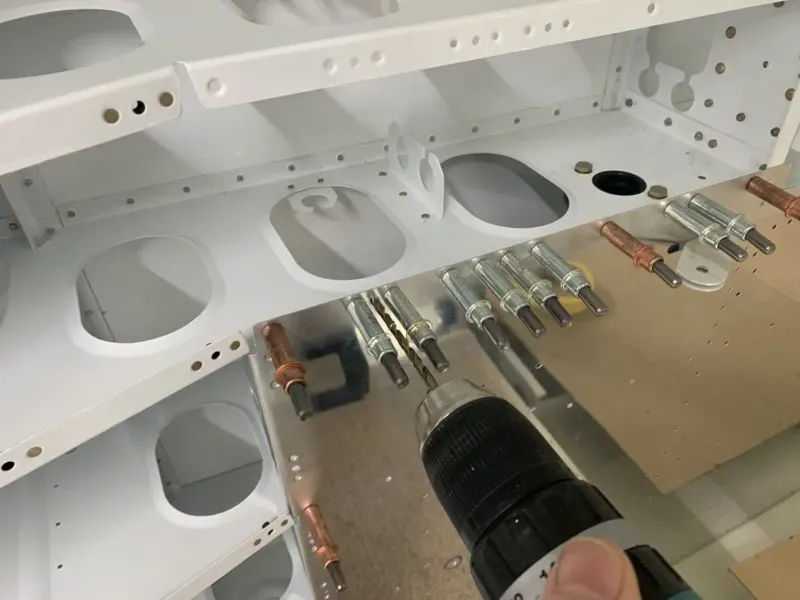

Four nut plate holes have to be final drilled #19 along the forward inboard edges of the floors.

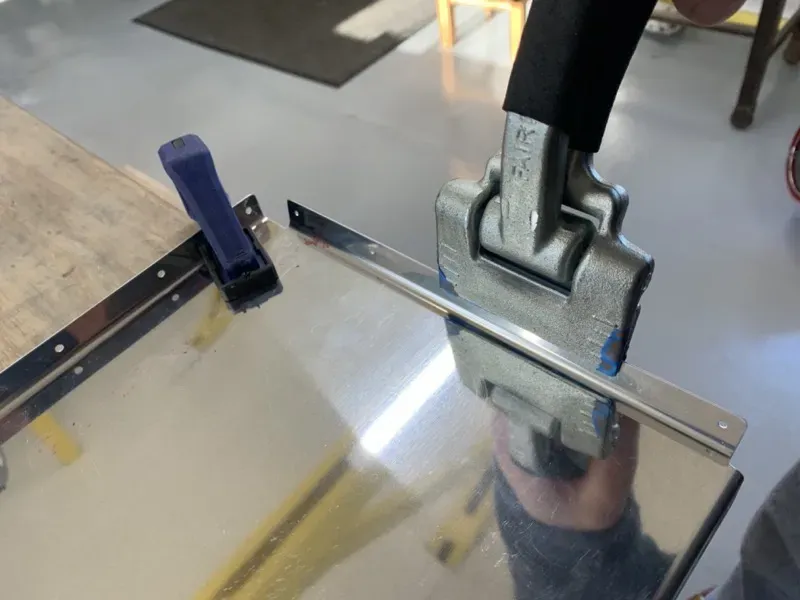

Several edges on the baggage side covers need to be “broken”. The tabs on the aft side covers were too small for the Cleaveland Edge Tool, so I resorted to the Offset Hand Seamer.

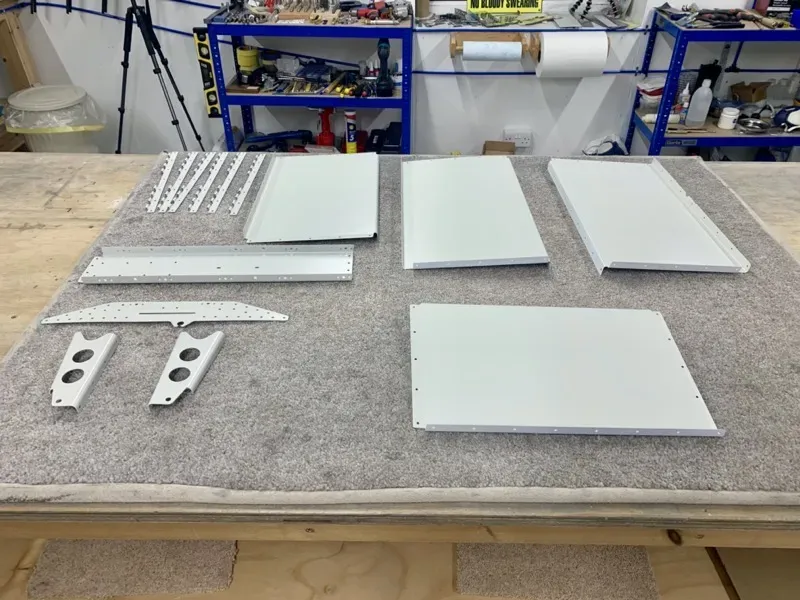

Here are the parts sprayed with my 2K Cockpit Grey ready for assembly.

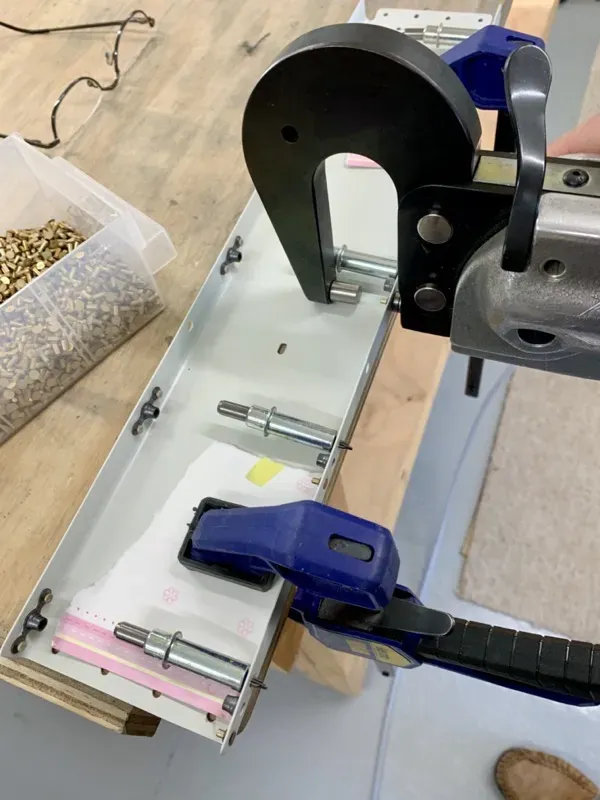

Nice little job riveting on the nut plates to the Flap Motor Channel.

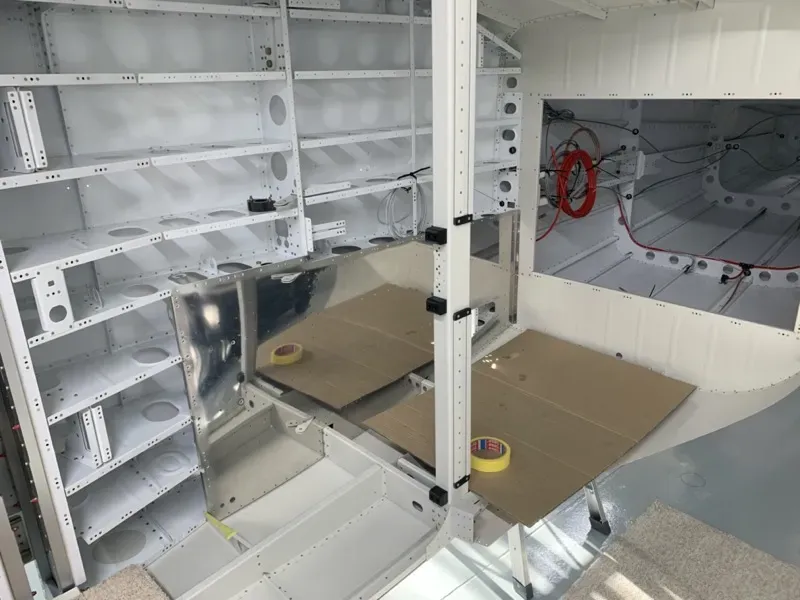

I’m being careful not to ruin the paint job, hence the cardboard, since I’m painting the cockpit parts as they are assembled.

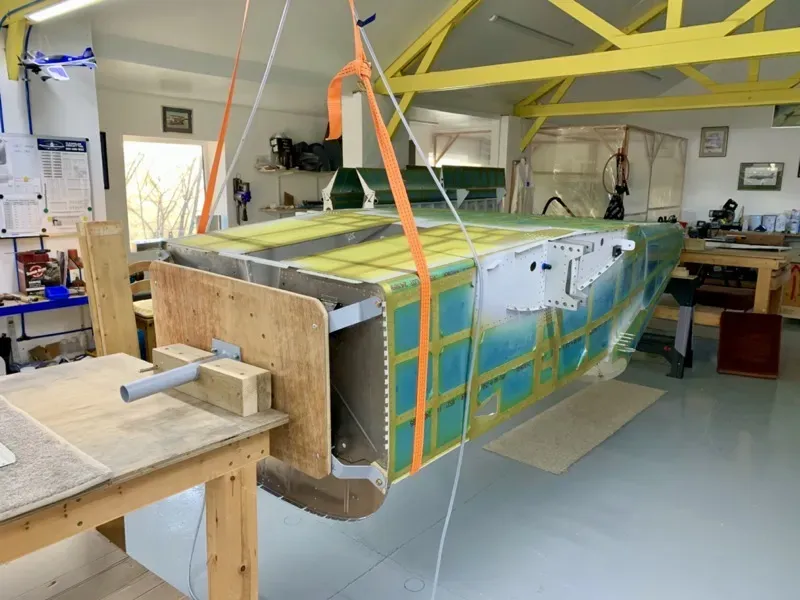

Vans suggest you clean under the baggage floor, removing all debris etc. Seemed like a top idea, so rather than hoover I decided to use the rotisserie to flip the fuselage upside down …

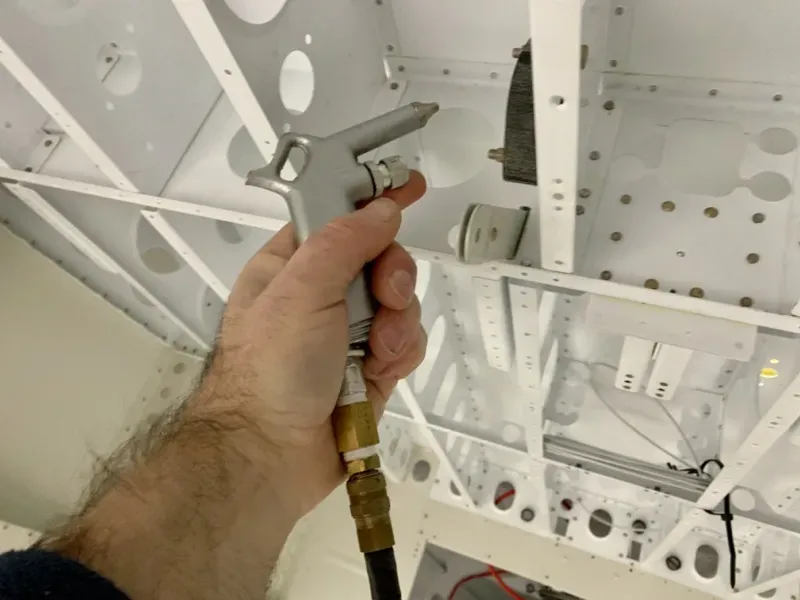

… and then use the airline to blow everything onto the workshop floor.
I’m planning to rivet the floors in place tomorrow.
