Here’s the Yaw servo mount riveted together ready for fitting in the Aft Fuselage.
But first I need the Elevator Bellcrank Mount …

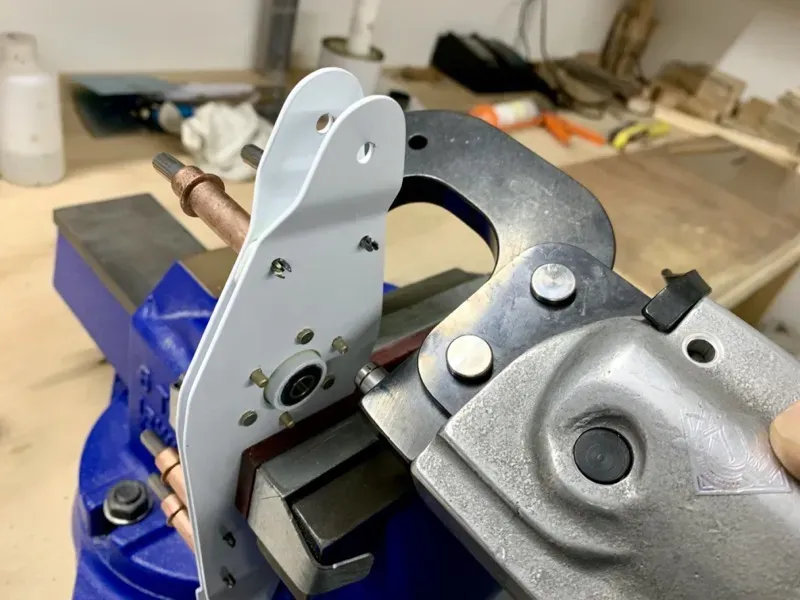

Squeezed the rivets on the Elevator Bellcrank Assembly.
The F-1037A Bellcrank Angles were prepared ages and ages ago in a previous section, can’t remember when.
But luckily I did remember where I had stored them!

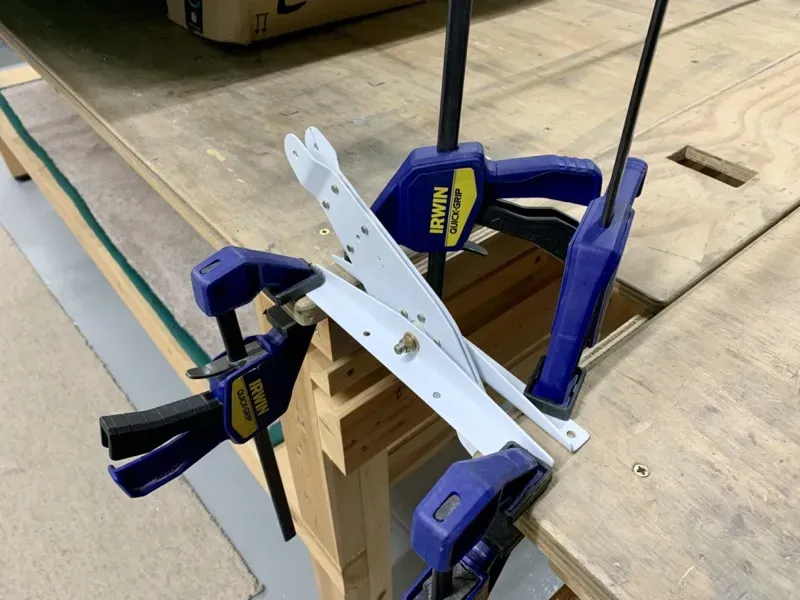

Anyway so that the Angles remained parallel after the pivot bolt was torqued, I clamped them to the bench.

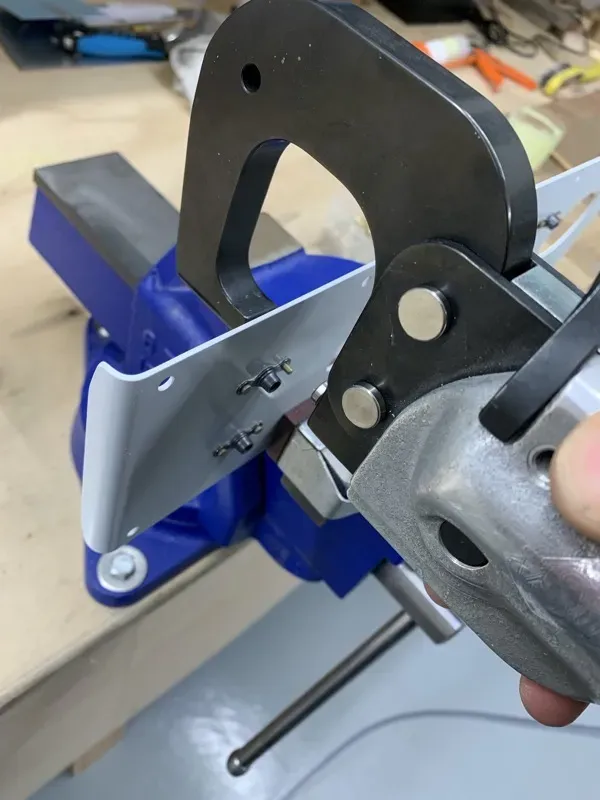

After attaching the Nutplates to the Bellcrank Mount …

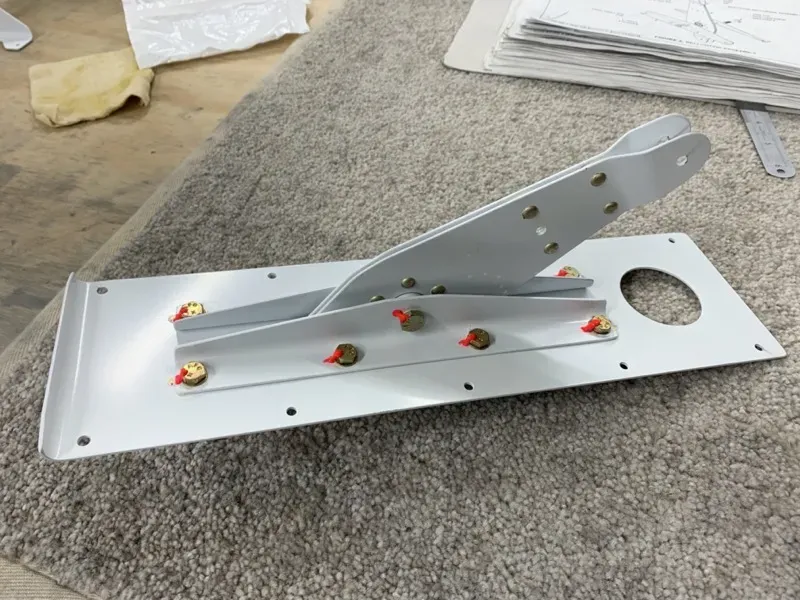

… the Bellcrank Assembly is bolted onto the Bellcrank Mount.
Now this is ready to fit the Yaw Mount in the Aft Fuselage.
