Now that the ribs are attached to the spars, I decided it was time to make a wing stand so I can get them off the workbenches & store them safely.

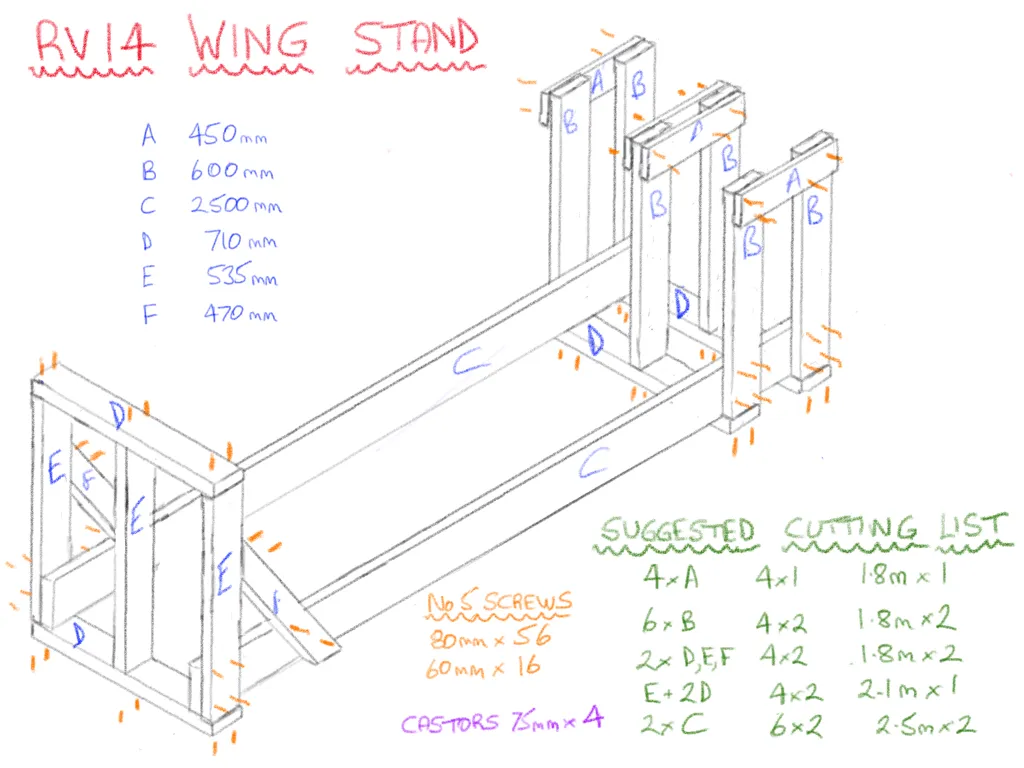

I copied other examples on the internet, but changed dimensions to suit the RV14. I built it from 4x2 timber, which works out at 92mm x 44mm in the UK once it has been planed. The long pieces (chasis) are 6x2, and the cross pieces which will have the carpet attached 4x1.
I’d planned the length to be 2.4m, but the timber store had a massive 5.1m length of 6x2 which they cut in half for me. I adjusted the length so that the carpet would straddle two nose rib positions, hence providing robust support, & also avoiding getting anywhere near the landing light.

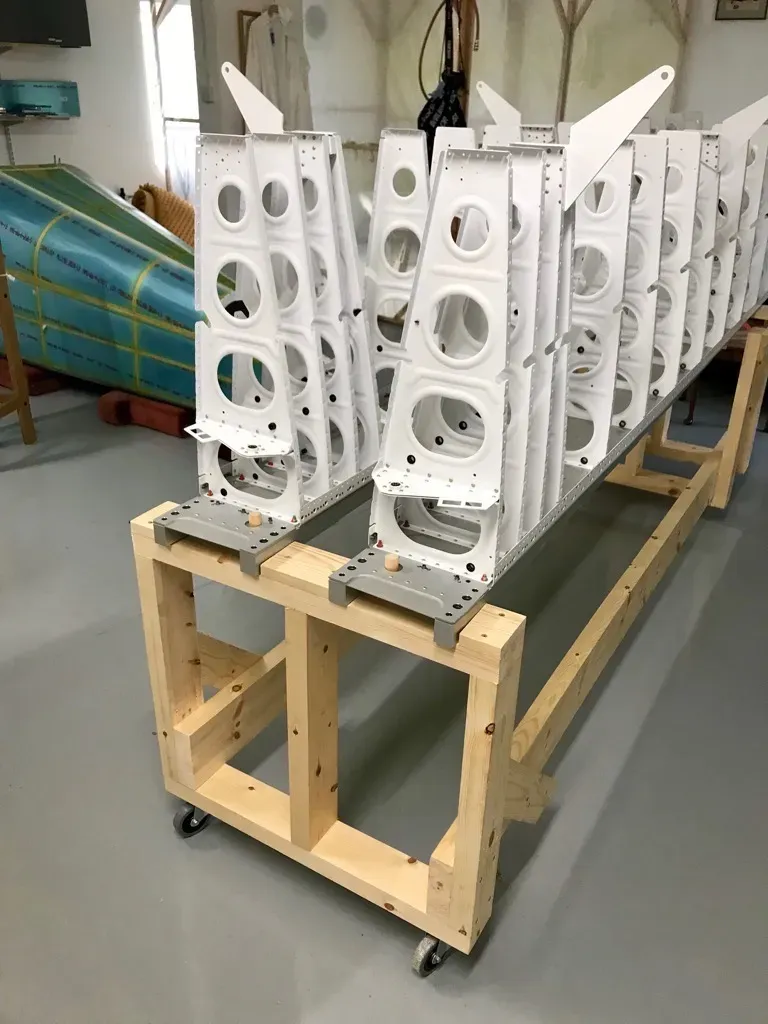

The root end is slightly smaller in height to allow for the spar step bar thickness.

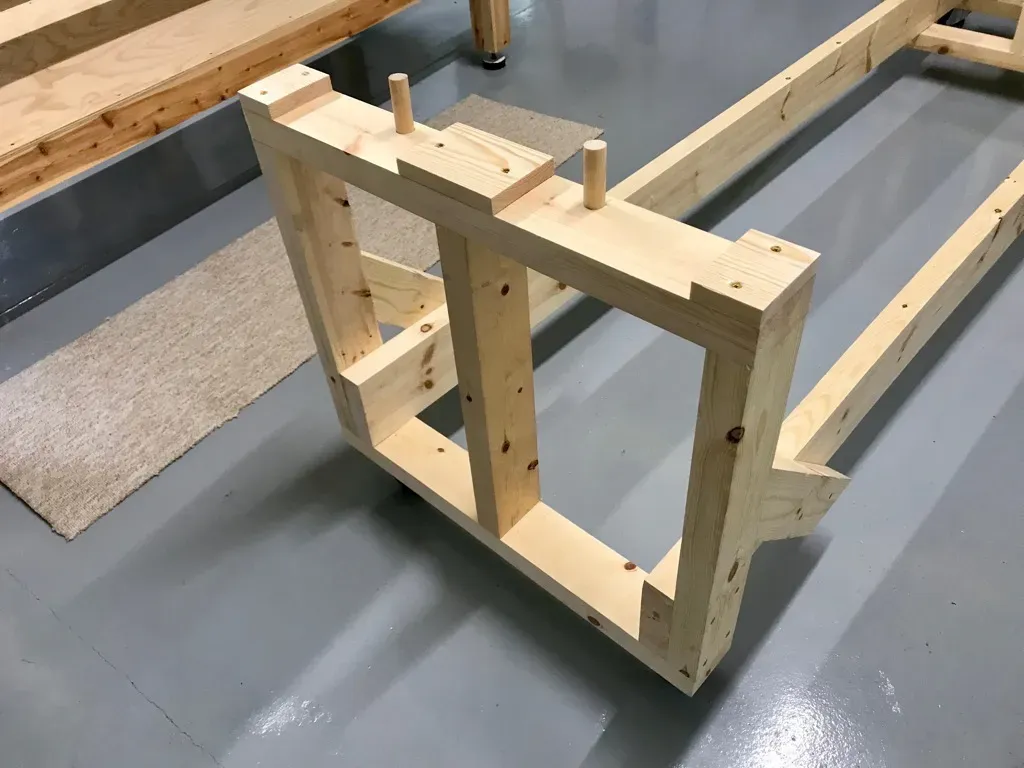

I put some guide blocks and dowels at the root support end to ensure nothing slips off!
I’d originally planned to put on various other cross braces, since on paper it looked a bit wobbly. However, once built with No5 screws and PVA glue it was amazingly robust, so I didn’t bother. Good job I don’t design aeroplanes, or they’d be massively over-engineered : )
Actually, I suspect the chassis built from 4x2 would be good enough.

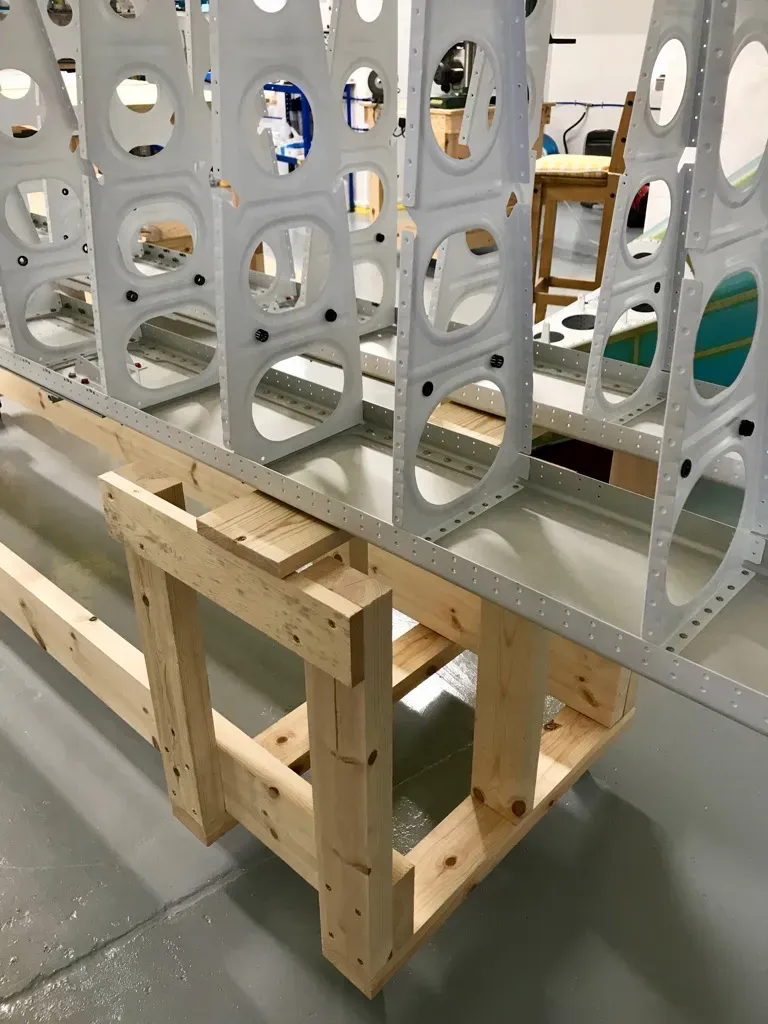

I put a piece of timber across the carpet support end to prop up the spars until I have attached the leading edge.
